Can I Put Heat Tape on PEX Pipe? A Complete Guide

When winter temperatures plummet, ensuring your plumbing remains intact is crucial. One effective method to prevent PEX pipes from freezing is by using heat tape. But is it safe? How should it be installed? This comprehensive guide answers these questions and more.

Understanding PEX Pipes and Heat Tape

PEX Pipes: Cross-linked polyethylene (PEX) pipes are popular for their flexibility and resistance to freezing. They can expand slightly under pressure, reducing the risk of bursting compared to rigid pipes.Good and Bad People+7The Spruce+7Design Corral+7

Heat Tape: Also known as heat cables or heat trace, heat tape is an electrical heating element designed to prevent pipes from freezing. It can be self-regulating or thermostat-controlled. Self-regulating heat tape adjusts its heat output based on the surrounding temperature, making it energy-efficient and safer for use with PEX pipes .The Spruce+1OutdoorBoiler.com+1

Is It Safe to Use Heat Tape on PEX Pipes?

Yes, you can use heat tape on PEX pipes, but with precautions. Not all PEX types are suitable for heat tracing. Standard PEX (Type A) may not withstand the temperatures generated by heat tape. In contrast, PEX B and PEX C are more tolerant of higher temperatures and are better suited for heat tape applications .Home Fix MagicThe Fix How

Choosing the Right Heat Tape for PEX Pipes

When selecting heat tape for your PEX pipes, consider the following:

• Type: Opt for self-regulating heat tape, which adjusts its heat output based on the ambient temperature, reducing the risk of overheating .

• Wattage: Choose a heat tape with appropriate wattage for your pipe’s size and the climate’s severity.The Fix How

• Length: Measure the length of the pipe to determine the required length of heat tape. It’s advisable to add 10-20% extra length to ensure full coverage .The Fix How+1Good and Bad People+1

• Voltage: Ensure the heat tape’s voltage matches your power supply.

• Safety Features: Look for heat tape with built-in thermostats or overheat protection.

How to Install Heat Tape on PEX Pipes

Materials Needed:

• Self-regulating heat tape

• Electrical tape or zip tiesThe Spruce+1Design Corral+1

• Thermostat (if not integrated)The Spruce

• Insulation (optional but recommended)

Installation Steps:

1. Turn Off Water Supply: Before starting, ensure the water supply to the pipe is turned off.The Spruce+1Mr. Kitchen Faucets+1

2. Clean the Pipe: Wipe down the PEX pipe to remove any dirt or debris. A clean surface ensures better adhesion of the heat tape.

3. Measure and Cut Heat Tape: Measure the length of the pipe and cut the heat tape accordingly, adding an extra 10-20% for overlap.The Fix How

4. Apply Heat Tape: Starting from one end of the pipe, apply the heat tape along the length of the pipe. Avoid spiraling the tape; instead, lay it straight along the pipe .TLC Electrical Supplies

5. Secure the Tape: Use electrical tape or zip ties to secure the heat tape in place, ensuring it doesn’t move during operation.The Spruce

6. Install Thermostat: If your heat tape doesn’t have a built-in thermostat, install a separate thermostat at the coldest point of the pipe to regulate temperature.The Spruce

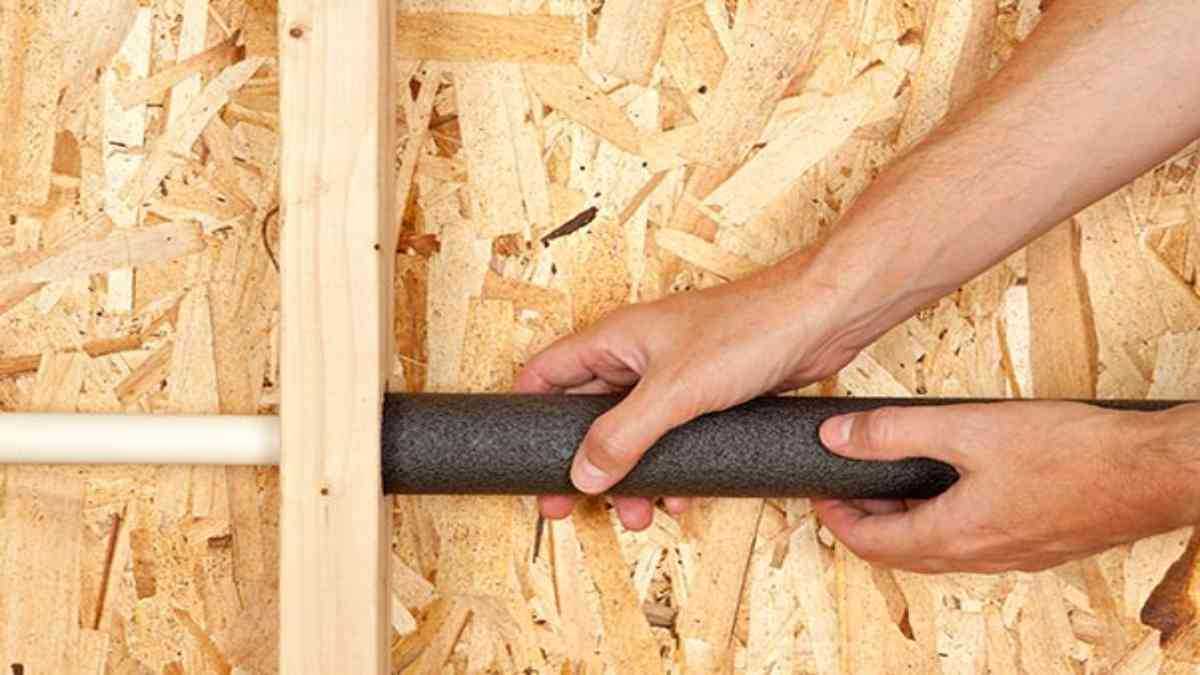

7. Insulate the Pipe: After installing the heat tape, wrap the pipe with insulation to retain heat and protect the tape.

8. Connect Power: Plug in the heat tape to a grounded outlet. Ensure the power source matches the heat tape’s voltage requirements.

Safety Precautions

• Avoid Overlapping Tape: Never overlap heat tape, as this can cause overheating and potential fire hazards .

• Regular Inspections: Periodically check the heat tape for signs of wear or damage. Replace any faulty sections immediately.The Fix How+7Foremost Insurance Group+7Basement Nut+7

• Proper Insulation: Use flame-retardant insulation materials to cover the heat tape and PEX pipe. Overinsulating can cause the tape to overheat TLC Electrical Supplies.Phoenix Insulation Pros+5TLC Electrical Supplies+5Design Corral+5

• Manufacturer’s Instructions: Always follow the manufacturer’s guidelines for installation and maintenance.

Alternatives to Heat Tape

If you’re hesitant about using heat tape, consider these alternatives:

• Pipe Insulation: Foam or fiberglass pipe insulation can help prevent freezing by maintaining the pipe’s temperature.Design Corral+1plumbergrays.com+1

• Heating Cables: Similar to heat tape but often easier to install and maintain.The Spruce

• Heated Hoses: Ideal for outdoor applications like irrigation systems.

• Allow Faucets to Drip: In extremely cold conditions, allowing a slow drip can prevent water from freezing in the pipes.
